CE ISO9001 Certificate PVC Foam Profile Machine , Manufacture Supply PVC Profile Extrusion Machine
Quick detail:
1. PVC product is a new generation green environmental protecting material and very popular in the world at present. The material is extruded with low-cost wood chip, plant fibers and cotton haulm (such as corn haulm, wheat shell, and bulrush haulm) and wasted plastic (PP, PE and PVC). The raw material resources are broad, being a very good substitutes of wood, and has been widely used in the world, now it is also recognized and adopted in domestic market.
2. We can provide high quality wood-plastic extrusion line with configurations as following:
Automatic Charger
Twin screw common extruder
Conical twin-screw extruder
Vacuum forming machine
Surface Embossing Process machine
Haul-off and Cutter Units
Stacker
Heating/Cooling mixer
Automatic Loader
Description:
The whole production line includes the following parts:
1. SRL-Z300/600, SRL-Z200/500 mixing machine
2. Spring Feeder
3. SJSZ-65/132 twin screw extruder
4. PVC profiles moulds 8SETS purchased by buyer
5. Vacuum caliber moulding table
6. Hauling off machine
7. Film glue machine
9. Cutting machine
10. Pile machine
11. Profile crushing machine
12. Vibrate screen

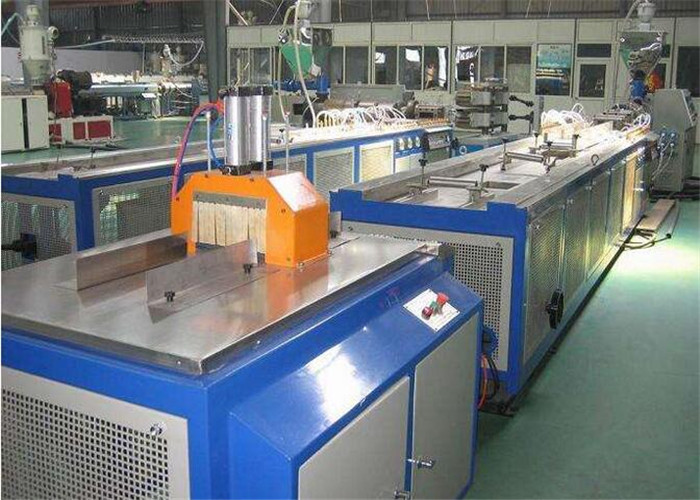

YF Series PVC profiles extrusion line is mainly used in PVC plastic steel doors and windows profile,window panels, perforated pipe threading and foam profile extrusion products. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
Applications:
YF Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.
Specifications:
| Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
| Max. Width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 |
| Extruder model | SJSZ51/105 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJSZ80/156 |
| Max. Extrusion capacity (kg/h) | 150 | 250 | 250 | 250 | 350 | 350 |
| Extruder power | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 |
| Cooling water(M3/H) | 5 | 7 | 7 | 8 | 10 | 12 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
