PET Plastic Sheet Extrusion Line , 50HZ APET PETG Sheet Machinery
Quick detail:
Material : PET
Voltage: 380v/50hz
Screw design: single screw
Capacity: 100-450kg/h
Product type : sheet
width of sheet: 1200mm
thickness of sheet : 0.18-2mm
speed of production line: 5-25m/min
condition : new
certification: CE UL CSA
warranty: 1 year
Description:
1.suitable for 100% PET recycled material,thickness:0.2-2mm,max output 600-700kg/h,also can be custom-
made,according to requirement.
2.This machine unit adopts the specially-designed single or double screw extruder, according to
requirement.Also,it can choose co-extrusion technology for APET,PETG,etc.
3.Double column and double station screen,having the feature of good exhaust and cleaness.
4.on line silicone oil, anti-static device,imported transducer for speed adjusting, and imported RKC
temperature control instrument, featuring wide adjusting scope, high temperature control precision, and
convenient and reliable operation.
5.The auxiliary machine comprises vacuum shaping platform, tractor, cutter, and loading rack. The
equipment of large forced refrigeration device ensures the shaping effect of door plates. Crawl type tractor
adopts imported reducer motor and transducer and it’s distinguished by reasonable structure, large
traction force, and stable traction. The cutter is reliable and correct in operation and high in cutting
precision. The loading rack, outfitted with movable loading trolley and special rubber protection layer,
doesn’t damage any materials and is convenient for use.
6.The auxiliary machine unit adopts PLC control or domestic famous control system, reliable and stable.
Applications:
Vacuum forming: food packager; toy box; stationery case; hardware packing
Obstruct packing: for electric components packing
Normal application: folded forming; collar lining; decoration material; file folder; document cover;
Special application: medical instrument;medicine packing; industrial anti-sepsis; roast tray.
Specifications:
| Model | Extruder | Motor Power (kw) | Width(mm) | Thickness(mm) | Line Speed(m/min) | Output (kg/h) |
| SSP-PET120 | SJ120×30 | 132 | 500-1200 | 0.15-2 | 5-25 | 450 |
| SSP-PET150 | SJ150×30 | 185 | 800-2200 | 0.15-2 | 5-18 | 650 |
Competitive Advantage:
- CE and UL
- rich ience engineer
- competitive price
- good after service
Product Tags:
|
|

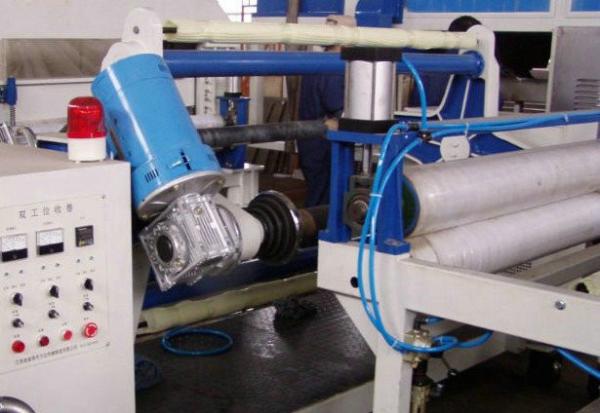

PET Plastic Sheet Extrusion Line , 50HZ APET PETG Sheet Machinery Images
|
